Audio Requirements

- Maurizio Geri OFFICIAL WEB -

P.A.: a professional, high quality system, (EV series x array, xi, xlc, x-line; D&B; Meyer; Nexò; V-dosc, d-V-Dosc..) according to the room size; should be actively crossovered ( 3 or 4 ways ) and powered by matched, high quality amps . Should be flown where possible; if not, stacked on risers out of stage. The system should be in Stereo configuration; an indipendent output to feed the subs should be provided where possible; balcony, frontfill and delayline speakers should be installed where necessary and precisely delayed.

F.O.H. MIXING DESK: high quality 12 inputs + stereo fx returns, 6 aux sends pre-post, 4 band eq fully parametric (or with semiparametric mid + 2 shelving), adjustable lo cut, VCA groups (Crest century VX, V12; Midas H.. ; Soundcraft five….). We prefere an anologic consolle; digital consolle only where monitors are driven by a separate mon desk. NO 01, 03, Beheringer digital. F.O.H. position should be centrally located – if possible not under balcony – not behind a window! Provide a talkback mic to stage monitors.

F.O.H. OUTBOARDS: 1 high quality 31 band graphic eq; 3 fx units (Spx 990, PCM 70, 80, 90…); 6 channels high quality compression ( Dbx, Bss, Drawmer…); 1 cd player. Line delays and separate equalizers where front fill, delays and balconies are installed.

MONITORING: high quality 24 inputs, 4 band eq fully parametric or semiparametrics mid + 2 shelving, adjustable lo cut. 2 channels of compression, 1 FX unit, 3 indipendent mixes available, 3 high quality 31 bands graphic eq inserted in outputs, 4 small sized, lo profile wedges, (3 on stage and 1 at monitor mixer position) with 12” woofer (or Nexò PS 10), powered by high quality matched amps.

Where a monitor mixer is provided, an experienced monitor engineer should be available during stage set up, sound check and show.

Where a monitor mix is not provided, f.o.h. desk must be capable of 4 equalized pre aux sends (monitors) and 4 post aux sends (fx)

MICROPHONES / D.I.: check input list; this is the main choice; equivalent mics are acceptable.

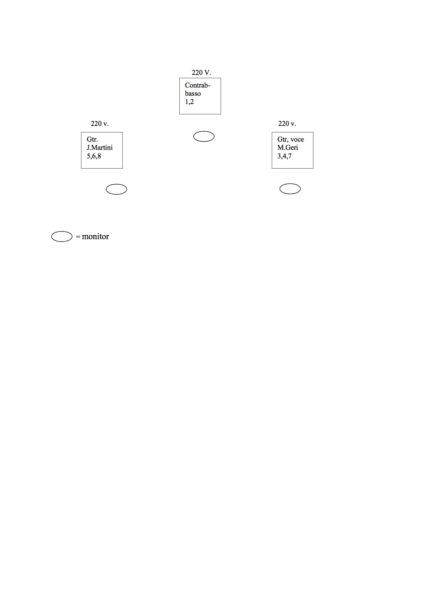

STAGE: minimum 4×4 (meters) available for the band. Must be safely reachable. No unnecessary objects should be on stage. We need 3 armless chairs .

SOUND CHECK: At least 1 hour and 15’



input Mic/d.i.


insert Note


Doublebass d.i. box attiva

Power 220v.


Doublebass xlr


Guitar “Dupont” M.Geri xlr

Power 220 v.


Guitar “Dupont” M.Geri Cardioid mic.


Guitar J.Martini d.i. Box attiva

Power 220 v.


Guitar J.Martini Cardioid mic.


Voice M. Geri SM58



Voice J.Martini SM58


More informations about this technical rider:





Download Audio Requirements
